SeaRox Lightweight Firesafe Insulation

SeaRox FM 6040 ALU

Name: SeaRox FM 6040 ALU
Brand: Rockwool

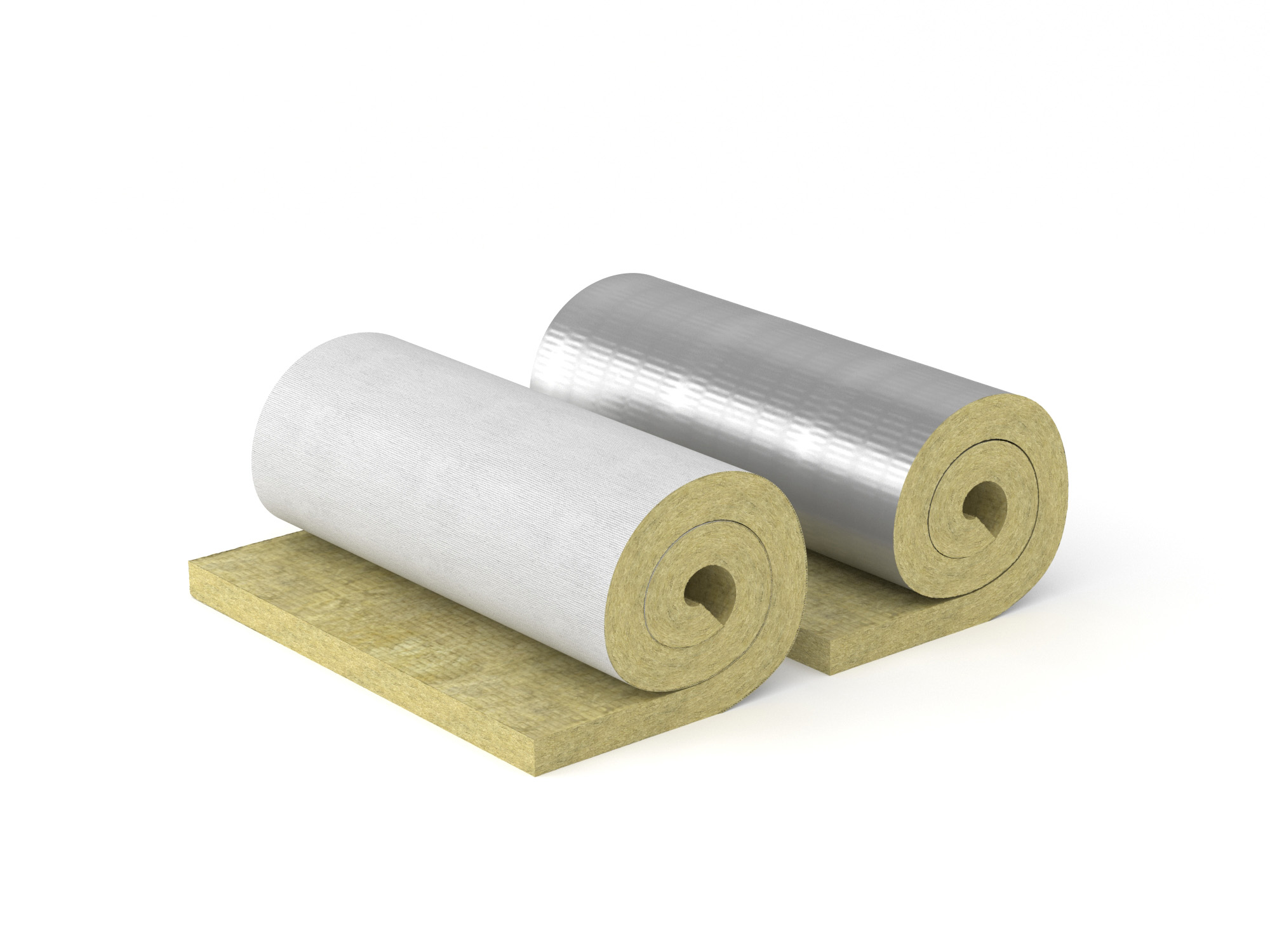

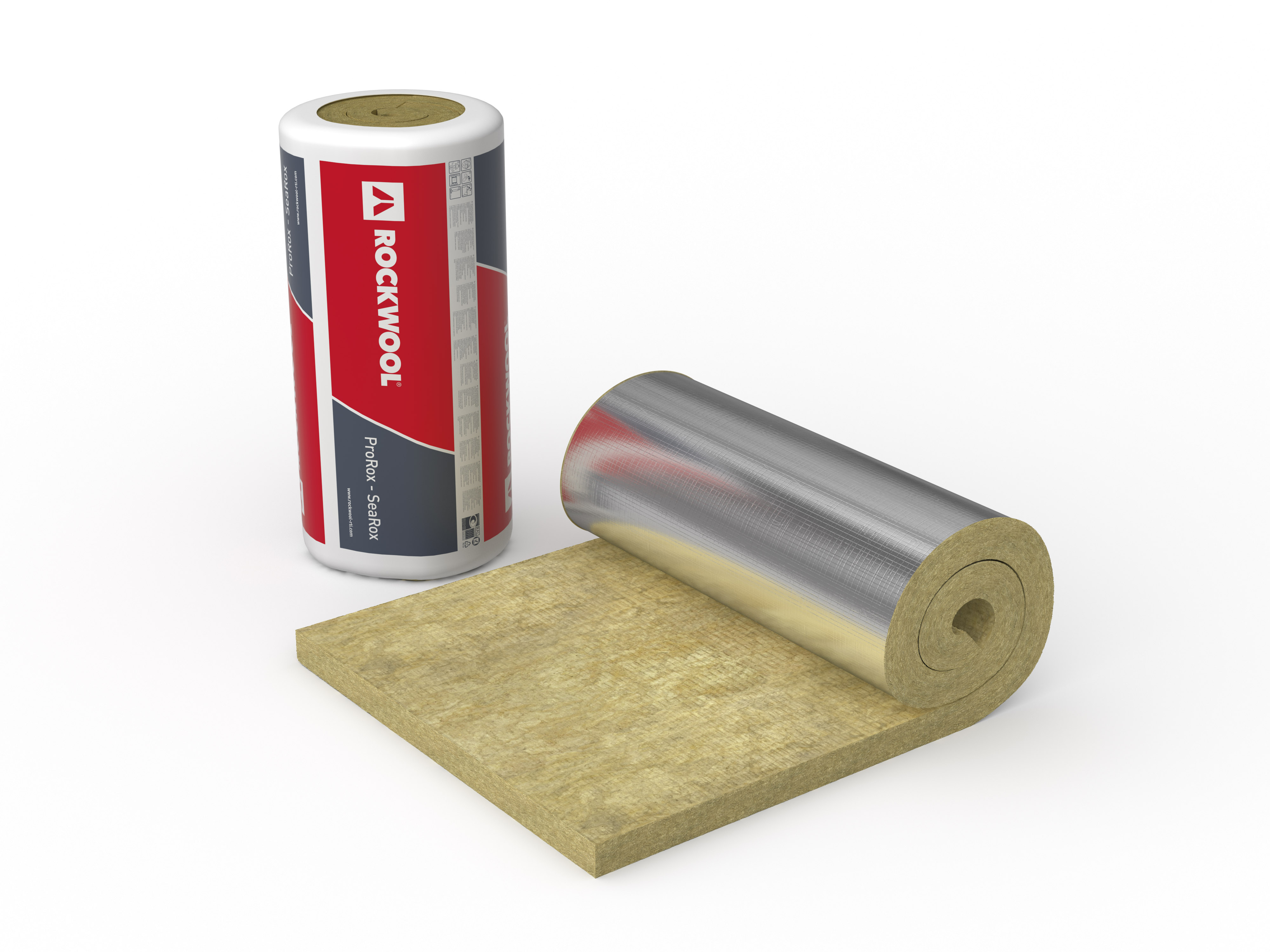

SeaRox FM 6040 ALU is a lightweight and flexible stone wool insulation
mat (wrap), faced on one side with reinforced aluminium foil. Glass cloth
(GW200, GW-A, ALU-G) facings are available on request.

Download Datasheet Contact

Back

SeaRox FM 6040 ALU is a lightweight and flexible stone wool insulation
mat (wrap), faced on one side with reinforced aluminium foil. Glass cloth
(GW200, GW-A, ALU-G) facings are available on request.

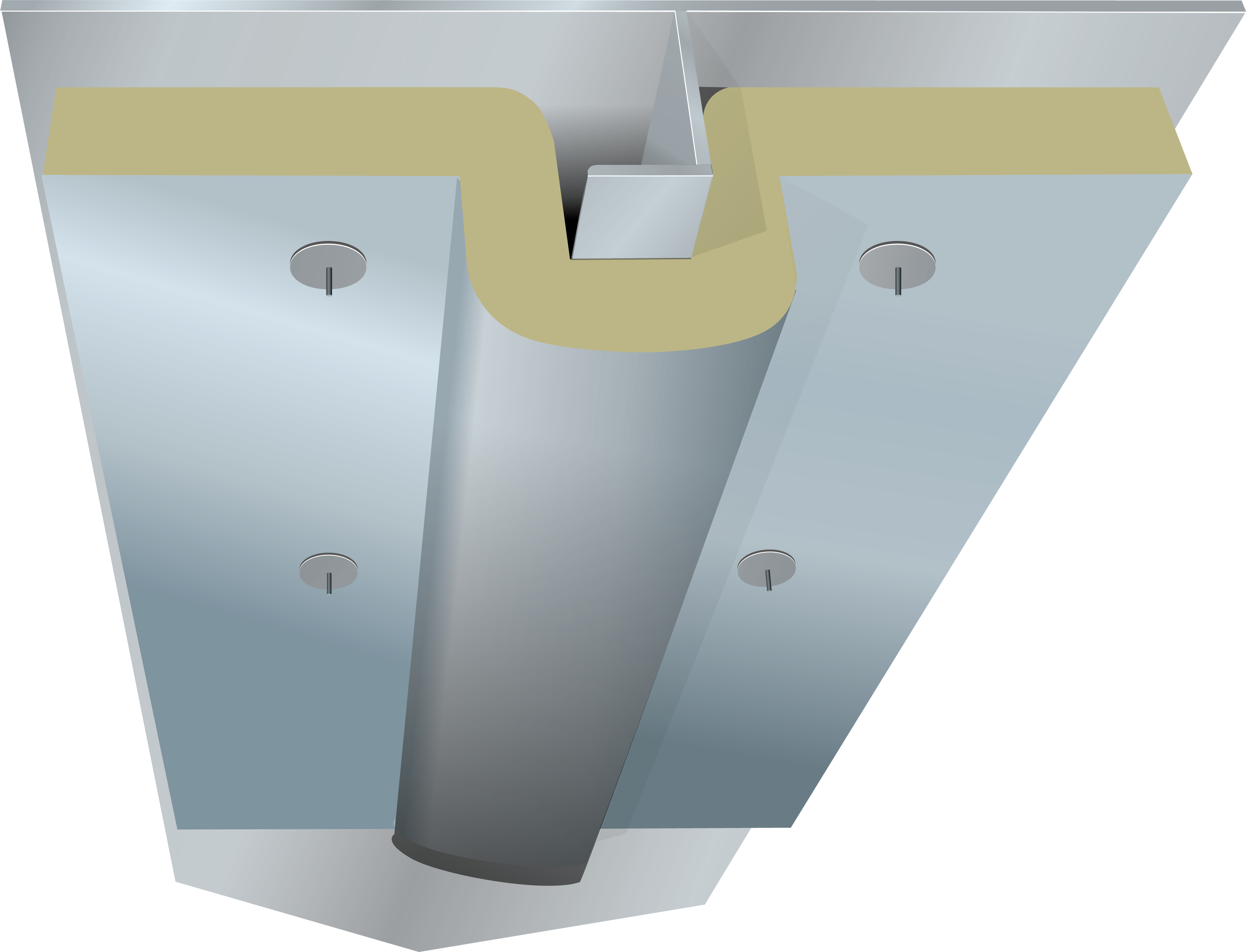

The mat (wrap) is especially suitable for fire rated A-class steel and aluminium constructions where low weight plays an important role, such as onboard passenger ships, naval ships and offshore supply vessels.

SeaRox FM 6040 ALU complies to directive 2014/90/EU of 23 July on marine equipment (MED) and IMO 2010 FTP Code.
Above product declarations are also applicable for product with optional facing.
ROCKWOOL stone wool insulation is made from volcanic rock and complies with Note Q, regulation (EC) No. 1272/2008.

Firesafe

The ROCKWOOL Technical Insulation products are based on stone wool, which cannot burn and which can stand temperatures up to 1000 degrees C without melting. Thus ROCKWOOL stone wool provides the best guarantee for an effective fire protection on board ships and offshore platforms.

Learn more

Acoustic

What is sound? In physical terms, sound is the mechanical vibration of a gaseous, liquid or solid elastic medium. Sound is a form of mechanical energy. It is produced, when particles oscillate around their equilibrium position.

Learn more

Comfort

The requirements of the indoor climate and comfort have become more stringent during the recent years. The insulation constitutes an important factor of this, as it ensures obtaining that the correct temperature is obtained.

Learn more

Thermal

To guarantee a correct process cycle, the condition of the media within the pipes must remain within the set limitations (e.g. temperature, viscosity, pressure, etc.). In addition to the correct isometric construction and fastening of the piping, the piping insulation also has an important function. It must ensure that the heat losses are effectively reduced and that the installation continues to operate economically and functionally on a permanent basis. This is the only way to guarantee the maximum efficiency of the process cycle throughout the design service life without losses as a result of faults.

Learn more

Outfitting

To obtain a good comfort, a good noise reduction is required between the individual decks. To prevent noise – particularly impact sound and structure borne noise– from travelling from one cabin to another you must use an insulation solution which has the necessary rigidity, elasticity and noise reduction/absorption.

Learn more

Facings

There are many reasons for choosing insulation products with facings. It is generally done to obtain a vapour barrier, which prevents formation of condensation on the cold side of a construction.

Learn more

Back

documents

	pdf

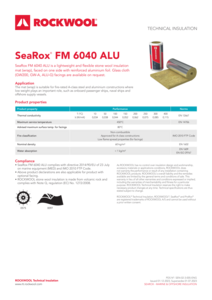

SeaRox® FM 6040 ALU

SeaRox FM 6040 ALU is a lightweight and flexible stone wool insulation mat (wrap), faced on one side with reinforced aluminium foil. Glass cloth (GW200, GW-A, ALU-G) facings are available on request.

pdf

New Generation SeaRox Lightweight

Lightest stone wool solutions

pdf
